Joint Fitting example¶
This notebook covers how to perform joint optimization and inference for multiple datasets simultaneously, using nDspec’s fit objects. As an example, we will jointly fit two spectra extracted from NuSTAR’s FPMs, but the analysis here is identical no matter what data (or type of data) you want to combine, whether they be time-averaged spectra, lags, or something else.
As usual we will begin by importing the required libraries:
[1]:
import os
import sys
sys.path.append('/home/matteo/Software/nDspec/src/')
import numpy as np
import matplotlib as mpl
mpl.rcParams.update(mpl.rcParamsDefault)
import matplotlib.pyplot as plt
from ndspec.Response import ResponseMatrix
import ndspec.FitTimeAvgSpectrum as fitspec
import ndspec.Models as models
import ndspec.XspecInterface as XSModels
from lmfit import Model as LM_Model
Loading Data¶
Setting up a joint requires first setting up one separate fitter object (regardless of type) for each dataset we want to consider. In our case, we will use two FitTimeAvgSpectrum objects, one for each FPM. As in the tutorial on fitting a time averaged spectrum, we need to load the response matrices first, after which we will load our spectra, restrict the energy range, and plot each to make sure the loading worked correctly:
[2]:
nustar = os.getcwd() + "/data/"
rmfpath = nustar + "/nu90401309004A01_sr.rmf"
fpma_04 = ResponseMatrix(rmfpath)
arfpath = nustar + "/nu90401309004A01_sr.arf"
fpma_04.load_arf(arfpath)
rmfpath = nustar + "/nu90401309004B01_sr.rmf"
fpmb_04 = ResponseMatrix(rmfpath)
arfpath = nustar + "/nu90401309004B01_sr.arf"
fpmb_04.load_arf(arfpath)
Arf missing, please load it
Arf loaded
Arf missing, please load it
Arf loaded
[3]:
fpma_04_fit = fitspec.FitTimeAvgSpectrum()
fpma_04_fit.set_data(fpma_04,os.getcwd()+'/data/nu90401309004A01_sr_grp.pha',
background=os.getcwd()+'/data/nu90401309004A01_bk.pha')
fpma_04_fit.ignore_energies(0,3.0)
fpma_04_fit.ignore_energies(77.5,300.0)
fpmb_04_fit = fitspec.FitTimeAvgSpectrum()
fpmb_04_fit.set_data(fpmb_04,os.getcwd()+'/data/nu90401309004B01_sr_grp.pha',
background=os.getcwd()+'/data/nu90401309004B01_bk.pha')
fpmb_04_fit.ignore_energies(0,3.0)
fpmb_04_fit.ignore_energies(77.5,300.0)

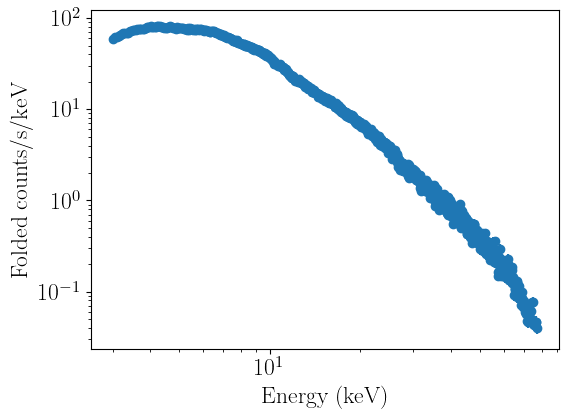

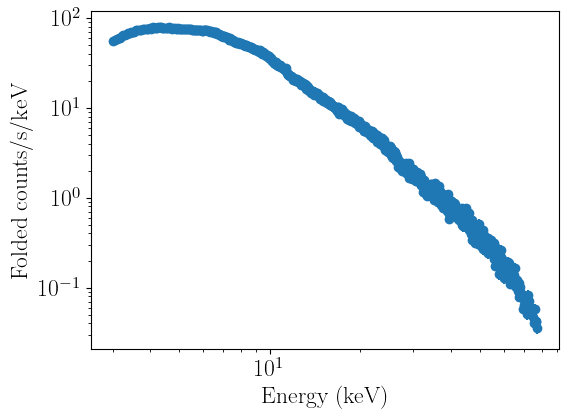

fpma_04_fit.plot_data()
fpmb_04_fit.plot_data()
/home/matteo/Software/nDspec/src/ndspec/SimpleFit.py:851: UserWarning: WARNING: found backscal=0, assuming it is 1
warnings.warn("WARNING: found backscal=0, assuming it is 1",
Defining models¶
So far, we’ve loaded in the data and created two Fit objects, each with their own data. We now want to define the models we will use, and then model the jointly data in the same way as Fitting a time averaged spectrum and Fitting a one-dimensional cross-spectrum
First, we have to define our models, for which we will use nDspec’s interface to the Xspec library of models. In this tutorial, we will limit ourselves to an absorbed disk+Comptonization model for simplicity.
[4]:
model_library = XSModels.FortranInterface()
def nthcomp(ear, params):
pass
def tbabs(ear, params):
pass
def diskbb(ear, params):
pass
model_library.load_models({
"diskbb": diskbb,
"tbabs": tbabs,
"nthcomp": nthcomp
})
def ndspec_tbabs(ear,nH):
par_array = np.array([nH])
model = model_library.tbabs(ear,par_array)
return model
#note that here we convert the disk normalization in Xspec to log10(normalization)
#this is because the log10 of the norm is linearly degenerate with the temperature,
#so using it as model input makes the job of optimizers/samplers easier.
def ndspec_diskbb(ear,Tin,norm_disk):
norm_disk = 10**norm_disk
par_array = np.array([Tin,norm_disk])
model = model_library.diskbb(ear,par_array)
return model
def ndspec_nthcomp(ear,Gamma,kT_e,kT_bb,norm_comp):
par_array = np.array([Gamma,kT_e,kT_bb,1,0,norm_comp])
model = model_library.nthcomp(ear,par_array)
return model
Solar Abundance Vector set to angr: Anders E. & Grevesse N. Geochimica et Cosmochimica Acta 53, 197 (1989)
Cross Section Table set to vern: Verner, Ferland, Korista, and Yakovlev 1996
Then, we define the actual composite models now and set our individual FitObjects to use those models.
[5]:
#This would be "tbabs * (nthcomp + diskbb)" in XSPEC notation,
#with the disk temperature tied to the seed photon temperature in nthcomp
spectral_model = LM_Model(ndspec_tbabs)*(LM_Model(ndspec_diskbb)+LM_Model(ndspec_nthcomp))
start_params = spectral_model.make_params(nH = dict(value=0.1,min=0.05,max=0.3,vary=True),
Tin = dict(value=0.35,min=0.1,max=2,vary=True),
norm_disk = dict(value=4,min=-1,max=6,vary=True),
Gamma = dict(value=1.50,min=1.4,max=2.2,vary=True),
kT_e = dict(value=200,min=20,max=400,vary=True),
kT_bb = dict(value=0.35,min=0.1,max=2,vary=True,expr="1.0*Tin"),
norm_comp = dict(value=0.1,min=0.001,max=30,vary=True),
)
fpma_04_fit.set_model(spectral_model,params=start_params)
fpmb_04_fit.set_model(spectral_model,params=start_params)
Combining the two and fit the data¶
Now that we have two models, we want to tell nDspec that they should be fit together and that parameters with identical names should be shared across all datasets. To do that, we’re going to use ndspec’s JointFit class.
JointFit acts similar to a dictionary: it contains each FitObject next to a name, and adds functionality for performing joint fits and inference for each FitObject. In this way, the user-facing methods like eval_model, get_resisuals etc remain unchanged, and under the hood nDspec is simply looping over the stored FitObjects, calling the appoprirate method, and returning the output normally. Importantly, you can still use the individual objects to perform individual fits like normal and
you set the objects data and model individually (as we did above).
[6]:
from ndspec.JointFit import JointFit
nustar_joint = JointFit()
nustar_joint.add_fitobj(fpma_04_fit,"fpma")
nustar_joint.add_fitobj(fpmb_04_fit,"fpmb")
nustar_joint.model_params.pretty_print()
Name Value Min Max Stderr Vary Expr Brute_Step
Gamma 1.5 1.4 2.2 None True None None
Tin 0.35 0.1 2 None True None None
kT_bb 0.35 0.1 2 None False 1.0*Tin None
kT_e 200 20 400 None True None None
nH 0.1 0.05 0.3 None True None None
norm_comp 0.1 0.001 30 None True None None
norm_disk 4 -1 6 None True None None
Because our starting model is extremely simple, we can simply just run our fit as normal and then visualize the results. If you were using a more complex fit (say, a reflection model), you should instead tweak the parameters a bit before running the fit.
[7]:
nustar_joint.fit_data()
-----------------------
[[Fit Statistics]]
# fitting method = leastsq
# function evals = 224
# variables = 6
-----------------------
Dataset: fpma
fit statistic = 4228.26276686132
reduced statistic = 3.298176885227239
# data points = 1288
Dataset: fpmb
fit statistic = 4365.861868724975
reduced statistic = 3.3635299450885783
# data points = 1304
-----------------------
total fit stat = 8594.124635586295
total reduced stat = 3.3233273919513904
total data points = 2592
-----------------------
[[Parameters]]
nH: 0.05002162 +/- 0.16040709 (320.68%) (init = 0.1)
Tin: 0.46212979 +/- 0.02046079 (4.43%) (init = 0.35)
norm_disk: 3.82210575 +/- 0.23814911 (6.23%) (init = 4)
Gamma: 1.56654580 +/- 0.00867704 (0.55%) (init = 1.5)
kT_e: 213.793410 +/- 0.14224570 (0.07%) (init = 200)
kT_bb: 0.46212979 +/- 0.02046079 (4.43%) == '1.0*Tin'
norm_comp: 4.22502595 +/- 0.08946359 (2.12%) (init = 0.1)
We now want to visualize the results of our fit. The JointFit class provides two methods to do this.
all_plots loops over all the stored FitObjects and calls each individual plot_model method in a separate window. This method is particularly appropriate for plotting datasets that do not share the same information (say, a lag spectrum and a time-averaged spectrum fitted together.
joint_plots is more apporpriate for our use case, as it performs the same functionality, but uses the same figure for all the fitter objects:
[8]:

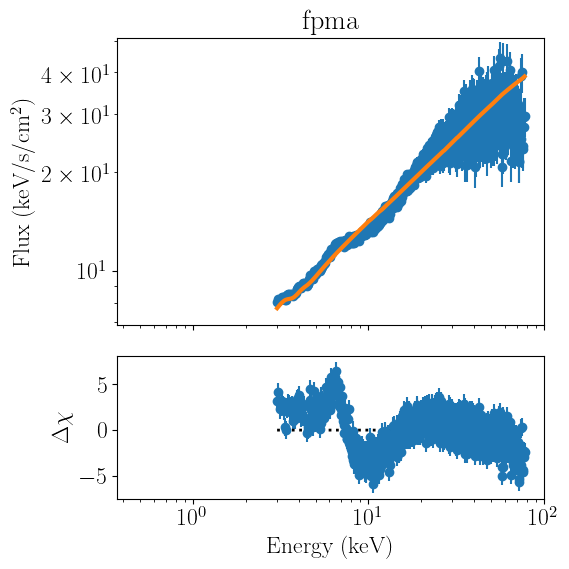

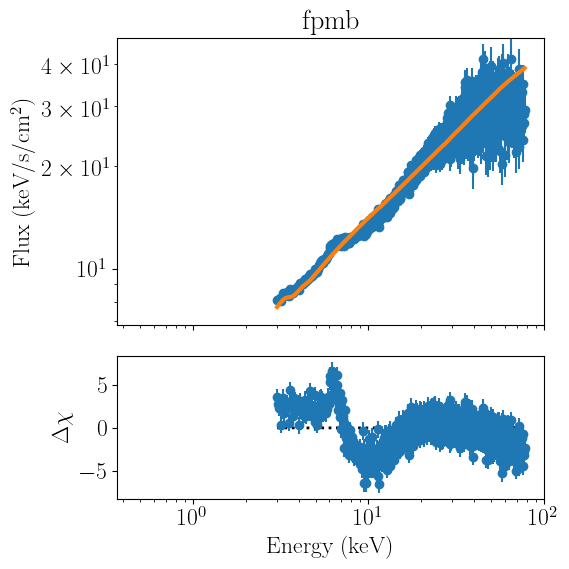

nustar_joint.all_plots(units='eeunfold')
[9]:

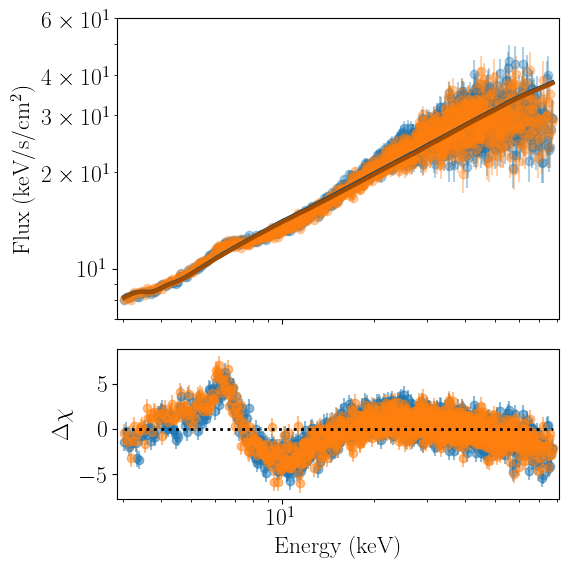

nustar_joint.joint_plot(units='eeunfold',xrange=[3,78],yrange=[7,60])
Finally, we can attempt to refine our fit a bit. It is common when modelling data from different detector to include a cross-calibration constant, which will be fixed to one for a ‘reference’ detector, and be allowed to vary for the others, in order to accoutn for uncertainties in the cross-calibration of the instrument.
In nDspec, this is accomplished by calling the renorm_timeavg method of the joint fit:
[10]:
nustar_joint.renorm_timeavg(True)
nustar_joint.model_params.pretty_print()
Name Value Min Max Stderr Vary Expr Brute_Step
Gamma 1.567 1.4 2.2 0.008677 True None None
Tin 0.4621 0.1 2 0.02046 True None None
kT_bb 0.4621 0.1 2 0.02046 False 1.0*Tin None
kT_e 213.8 20 400 0.1422 True None None
nH 0.05002 0.05 0.3 0.1604 True None None
norm_comp 4.225 0.001 30 0.08946 True None None
norm_disk 3.822 -1 6 0.2381 True None None
renorm_fpma 1 0.5 1.5 None True None None
renorm_fpmb 1 0.5 1.5 None True None None
[11]:
nustar_joint.model_params['renorm_fpma'].vary=False
nustar_joint.model_params['renorm_fpmb'].value=0.95
[12]:
nustar_joint.fit_data()

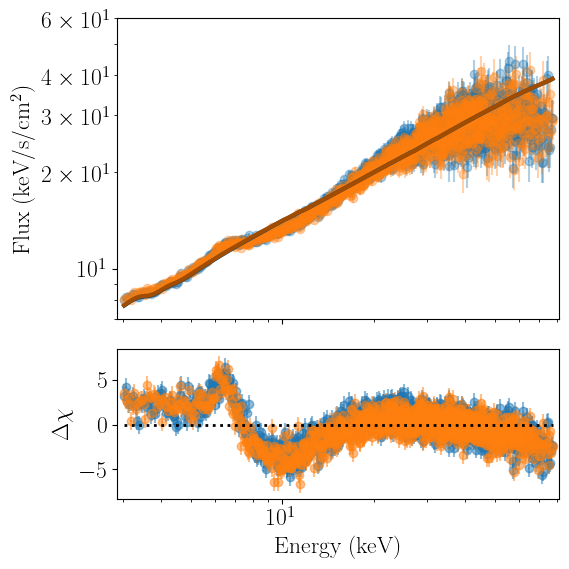

nustar_joint.joint_plot(units='eeunfold',xrange=[3,78],yrange=[7,60])
-----------------------
[[Fit Statistics]]
# fitting method = leastsq
# function evals = 163
# variables = 7
-----------------------
Dataset: fpma
fit statistic = 3906.5562237307963
reduced statistic = 3.049614538431535
# data points = 1288
Dataset: fpmb
fit statistic = 3785.389444385545
reduced statistic = 2.9185732030728953
# data points = 1304
-----------------------
total fit stat = 7691.945668116341
total reduced stat = 2.9756076085556447
total data points = 2592
-----------------------
nH: at boundary
[[Parameters]]
nH: 0.05000029 +/- 0.04165207 (83.30%) (init = 0.05002162)
Tin: 0.46431506 +/- 0.01050497 (2.26%) (init = 0.4621298)
norm_disk: 4.16541873 +/- 0.10151906 (2.44%) (init = 3.822106)
Gamma: 1.57401937 +/- 0.00206623 (0.13%) (init = 1.566546)
kT_e: 213.708342 +/- 0.10071648 (0.05%) (init = 213.7934)
kT_bb: 0.46431506 +/- 0.01050497 (2.26%) == '1.0*Tin'
norm_comp: 4.27197092 +/- 0.07571203 (1.77%) (init = 4.225026)
renorm_fpma: 1 (fixed)
renorm_fpmb: 0.99292732 +/- 0.00189809 (0.19%) (init = 0.95)
It looks like our fit improved marginally, but in this particular case the flux difference between the two detector is minor.
From here, users might want to perform inference on their joint fit in order to estabilish posterior distributions, Bayesian evidence, etc. Doing so is identical to the one-dimensional case discussed in the power spectrum inference tutorial; you would simply pass the JointFit object to the nDspec sampling utlity functions.
