Fitting a time-averaged spectrum¶
This notebook shows how to fit a time-averaged X-ray spectrum in nDspec. For least-chi squares fitting, nDspec makes use of the lmfit library. For error estimation, we encourage users to use Bayesian sampling, as detailed in the tutorial on fitting power spectra.
[1]:
import os
import sys
import numpy as np
sys.path.append('/home/matteo/Software/nDspec/src/')
from ndspec.Response import ResponseMatrix
import ndspec.FitTimeAvgSpectrum as fitspec
import ndspec.XspecInterface as XSModels
Loading and plotting data¶
Loading a time-averaged spectrum always requires users to first load a ResponseMatrix object. Once the response is loaded, we can declare a FitTimeAvgSpectrum object, and then pass both the ResponseMatrix file and the .pha file we are interested in to the set_data method. The spectrum file itself is processed through a built-in nDspec function, load_pha, which makes use of Astropy to load the appopriate arrays. The data is always stored in units of total counts, divided
by exposure and channel width (ie, counts/s/keV) as a function of energy channel width.
[2]:
path = os.getcwd() + "/data/"
rmfpath = path+"1200120106_rmf.pha"
nicer_matrix = ResponseMatrix(rmfpath)
arfpath = path+"1200120106_arf.pha"
nicer_matrix.load_arf(arfpath)
spectrum_fit = fitspec.FitTimeAvgSpectrum()
spectrum_fit.set_data(nicer_matrix,path+'1200120106_rebin.pha')
Arf missing, please load it
Arf loaded
/home/matteo/Software/nDspec/src/ndspec/SimpleFit.py:860: UserWarning: WARNING: backscal keyword not found, check file format
warnings.warn("WARNING: backscal keyword not found, check file format",
We can now plot the data. nDspec allows users to plot data in both folded and unfolded units. Unfolding is performed in a model independent way, following the method implemented in ISIS and discussed in Gunderson and Huenemoerder 2024. This is different (and more robust) than the method used in Xspec, because it does not require users to specify a model for unfolding the data, and does not cause spurious features to appear in the spectrum depending on the
model chosen for it. The units on the y axis are set following the same convention as Xspec: adding an e in the labels argument multiplies the y axis by a single unit of energy.
Before running a fit, it is good practice to ignore energy ranges appropriate for a given mission - for typical soft X-ray missions, this might mean restricting the noticed energies between 0.5 and 10 keV. nDspec allows users to selectively notice/ignore any energy range (in units of keV) they choose in their analysis, e.g. by excluding regions where a line might appear.
Note that unfolding may raise warnings if a given channel in a spectrum has 0 counts for any photon energy. This is to be expected and should generally not be cause for concern, particularly if users are restricting the noticed energies to a sensible range. The warnings are left in this notebook for the sake of clarity.
[3]:

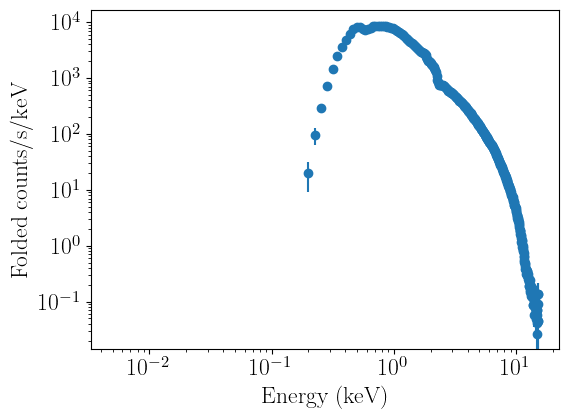

spectrum_fit.plot_data(units='data')

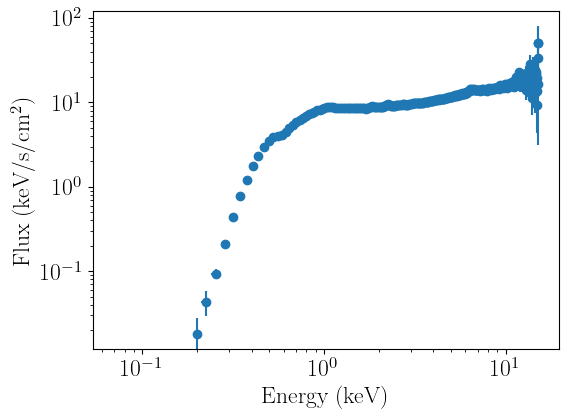

spectrum_fit.plot_data(units='eeunfold')
spectrum_fit.ignore_energies(0,0.5)
spectrum_fit.ignore_energies(10.0,20.0)
spectrum_fit.plot_data(units='eeunfold')

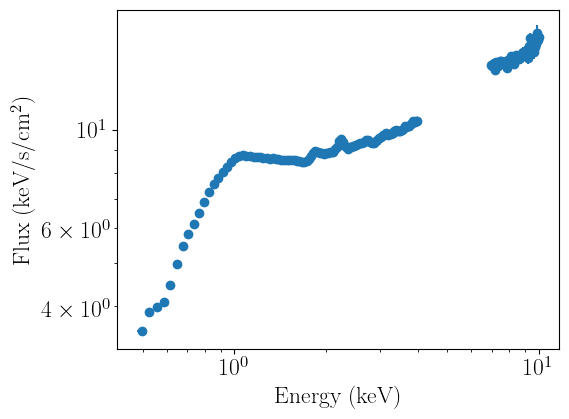

spectrum_fit.ignore_energies(4.0,7.0)
spectrum_fit.plot_data(units='eeunfold')

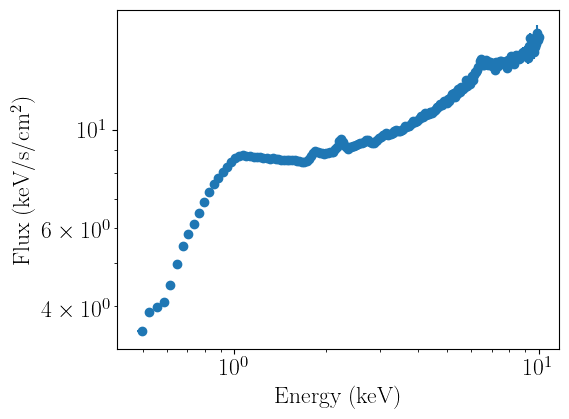

spectrum_fit.notice_energies(4.0,7.0)
spectrum_fit.plot_data(units='eeunfold')
Defining a model and preparing a fit¶
We can now define a model to fit our data. In this case, we are analyzing the hard state of an X-ray binary, so we will use a phenomenological model with a disk component, a corona/power-law component, and correct both for line-of-sight absorption.
nDspec allows users to access the Xspec library of models directly, either with an existing Heasoft installation, or with the [Xspectrampoline][https://github.com/nDspec/xspectrampoline] package.
[4]:
#the FortranInterface automatically looks for a Heasoft/Xspec trampoline installation
model_library = XSModels.FortranInterface()
#dummy calls to set up the models
def tbabs(ear, params):
pass
def diskbb(ear, params):
pass
def nthcomp(ear, params):
pass
def reflect(ear,params,seed):
pass
#this call actually loads the models in the library
model_library.load_models({
"diskbb": diskbb,
"tbabs": tbabs,
"nthcomp": nthcomp
})
model_library.print_model_info()
#finally, we can write a set of wrappers in order to evaluate each model; these will be called through LMFit
def ndspec_nthcomp(ear,Gamma,kT_e,kT_bb,norm_comp):
#wfor nthcomp, set the input type and redshift to default
par_array = np.array([Gamma,kT_e,kT_bb,1,0,norm_comp])
model = model_library.nthcomp(ear,par_array)
return model
def ndspec_tbabs(ear,nH):
par_array = np.array([nH])
model = model_library.tbabs(ear,par_array)
return model
def ndspec_diskbb(ear,Tin,norm_disk):
#we actually take the log10 of the disk normalization for convenience
norm_disk = 10**norm_disk
par_array = np.array([Tin,norm_disk])
model = model_library.diskbb(ear,par_array)
return model
Initialized Xspec models:
diskbb:
type: add
function called: xsdskb
parameters:
Tin: value: 1.0, min: 0.0, max: 1000.0, unit: keV
norm: value: 1, min: 0, max: 1e+20, unit: n/a
tbabs:
type: mul
function called: C_tbabs
parameters:
nH: value: 1.0, min: 0.0, max: 1000000.0, unit: 10^22
nthcomp:
type: add
function called: C_nthcomp
parameters:
Gamma: value: 1.7, min: 1.001, max: 10.0, unit: n/a
kT_e: value: 100.0, min: 1.0, max: 1000.0, unit: keV
kT_bb: value: 0.1, min: 0.001, max: 10.0, unit: keV
inp_type: value: 0.0, min: 0.0, max: 1.0, unit: 0/1
Redshift: value: 0.0, min: -0.999, max: 10.0, unit: n/a
norm: value: 1, min: 0, max: 1e+20, unit: n/a
Solar Abundance Vector set to angr: Anders E. & Grevesse N. Geochimica et Cosmochimica Acta 53, 197 (1989)
Cross Section Table set to vern: Verner, Ferland, Korista, and Yakovlev 1996
After defining the model functions, we can create an lmfit Model object using the standard synthax from other X-ray modelling softwares, ie absorption*(disk+powerlaw). We then initialize the parameter values using the make_params method of lmfit Model objects - here, Gamma is the Comptonization photon index, norm_comp the Comptonization normalization, kT_e the electron temperature, kT_bb the seed temperature in the Comptonization spectrum, Tin the diskbb
temperature, norm_disk the diskbb normalization, and nH the absorbing column density. make_params returns an lmfit Parameters object, which can then be assigned to our fitter.
Once the model and its starting parameters are defined, we can assign them to our fitter object with the set_model method. Then, after the data, model, and initial parameters are loaded, we can use the pretty_print and print_fit_stat method to get an idea on the fit statistics for our current set of parameters.
[5]:
from lmfit import Model as LM_Model
#define my unfolded model - this will be the only thing users have to define
unfolded_model = LM_Model(ndspec_tbabs)*(LM_Model(ndspec_nthcomp)+LM_Model(ndspec_diskbb))
start_params = unfolded_model.make_params(Gamma=dict(value=1.65,min=1.1,max=4.0),
kT_e=dict(value=100,min=50,max=150,vary=False),
kT_bb=dict(value=0.25,min=0.10,max=1),
norm_comp=dict(value=6.5,min=1e-1,max=50.),
Tin=dict(value=0.25,min=0.10,max=1,expr="1.0*kT_bb"),
norm_disk=dict(value=5,min=-2,max=8),
nH=dict(value=0.1,min=1e-3,max=2))
spectrum_fit.set_model(unfolded_model,params=start_params)
spectrum_fit.model_params.pretty_print()
spectrum_fit.print_fit_stat()
Name Value Min Max Stderr Vary Expr Brute_Step
Gamma 1.65 1.1 4 None True None None
Tin 0.25 0.1 1 None False 1.0*kT_bb None
kT_bb 0.25 0.1 1 None True None None
kT_e 100 50 150 None False None None
nH 0.1 0.001 2 None True None None
norm_comp 6.5 0.1 50 None True None None
norm_disk 5 -2 8 None True None None
Goodness of fit metrics:
Fit statistic: chisq
Fit statistic 7460.101968685523
Reduced fit stat 32.435225950806625
Data bins: 235
Free parameters: 5
Degrees of freedom: 230
tbvabs Version 2.3
Cosmic absorption with grains and H2, modified from
Wilms, Allen, & McCray, 2000, ApJ 542, 914-924
Questions: Joern Wilms
joern.wilms@sternwarte.uni-erlangen.de
joern.wilms@fau.de
http://pulsar.sternwarte.uni-erlangen.de/wilms/research/tbabs/
PLEASE NOTICE:
To get the model described by the above paper
you will also have to set the abundances:
abund wilm
Note that this routine ignores the current cross section setting
as it always HAS to use the Verner cross sections as a baseline.

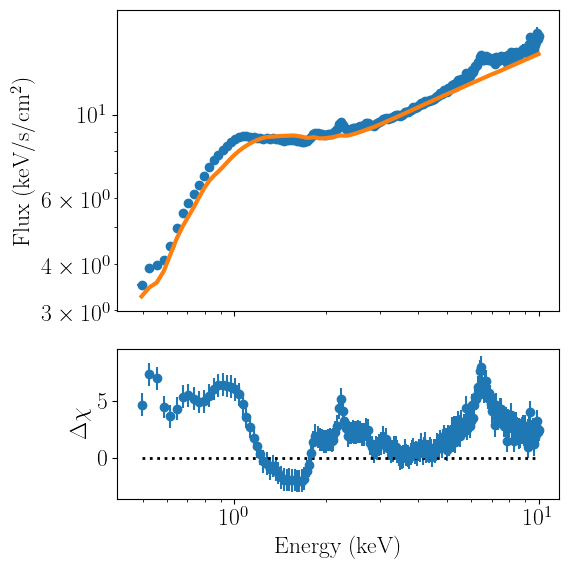

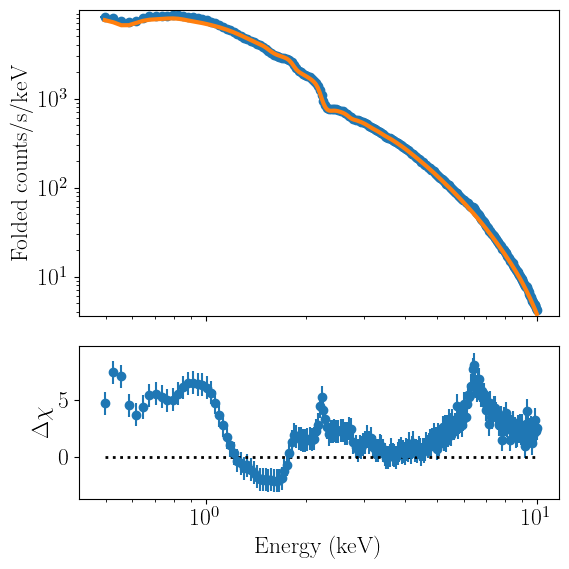

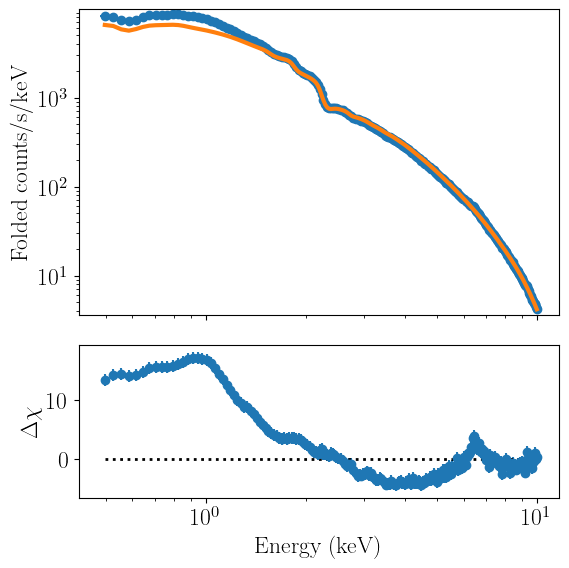

Plotting the model and data together can be done with the plot_model method. Identically to plot_data, users can use both folded and model-independent unfolded units:
[6]:
spectrum_fit.plot_model(units='data')
spectrum_fit.plot_model(units='eeunfold')
Running a fit¶
We can now fit the data by minimizing the least-chi squares statistic with the fit_data method. Once the fit completes, the method will output the best-fit statistics and their corresponding parameter values:
[7]:
spectrum_fit.fit_data()
-----------------------
[[Fit Statistics]]
# fitting method = leastsq
# function evals = 55
# data points = 235
# variables = 5
fit statistic = 528.0203696134593
reduced statistic = 2.295740737449823
Akaike info crit = 200.2440966933623
Bayesian info crit = 217.5420242640831
[[Parameters]]
nH: 0.11679821 +/- 0.00784816 (6.72%) (init = 0.1), model_value = 0.1167982
Gamma: 1.62134197 +/- 0.01872375 (1.15%) (init = 1.65), model_value = 1.621342
kT_e: 100 (fixed)
kT_bb: 0.27531342 +/- 0.00925560 (3.36%) (init = 0.25), model_value = 0.2753134
norm_comp: 5.94249999 +/- 0.17148786 (2.89%) (init = 6.5), model_value = 5.9425
Tin: 0.27531342 +/- 0.00925560 (3.36%) == '1.0*kT_bb'
norm_disk: 5.22547140 +/- 0.07958545 (1.52%) (init = 5), model_value = 5.225471
/home/matteo/.local/lib/python3.8/site-packages/uncertainties/core.py:1024: UserWarning: Using UFloat objects with std_dev==0 may give unexpected results.
warn("Using UFloat objects with std_dev==0 may give unexpected results.")
It is extremely important to note that the error bars reported by these least-chi squares are often highly misleading, particularly for cases with relatively complex parameter spaces (as is the case for high signal/noise X-ray spectra). These intervals should only be used as a rough indication of how well parameters can be constrained. They should NOT be included in peer-reviewed research as credible parameter intervals. Instead, users are highly encouraged to use and report credible intervals from Bayesian sampling; the tutorial on fitting power spectra discusses how to do this in nDspec.

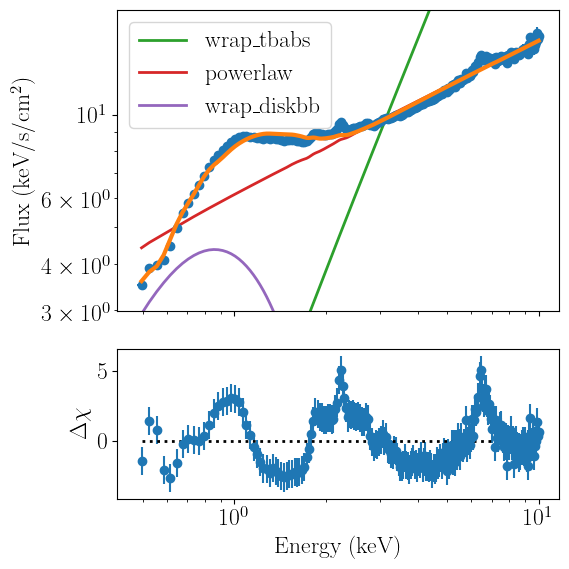

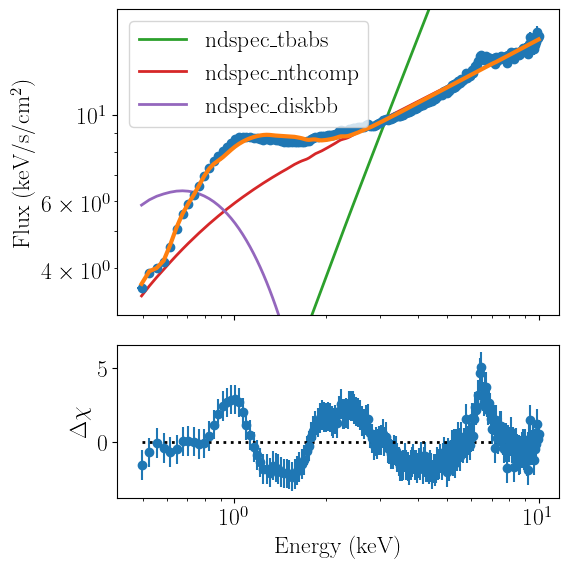

Once the fit is complete, we can plot the best-fitting model together with its components. Not that multiplicative components (such as tbabs) will not display correctly with the current implementation of nDspec. As a result, the automated plots from plot_model may not be good enough to be included in a scientific publication. This will be improved in a future version. Regardless, the relevant arrays (e.g. model values, data points, etc) are all accessible outside of the class. Users can find
more information on the arrays required to create their own plots in the nDspec API documentation page.
[8]:
spectrum_fit.plot_model(units='eeunfold',plot_components=True)
Having run our fit and plotted our results, we can conclude that this spectrum shows the typical features of an accreting black hole in the hard state: the disk is relatively weak and only contributes below 1 keV, much of the total luminosity is emitted by the power-law component, and the residuals show clear reflection features.
